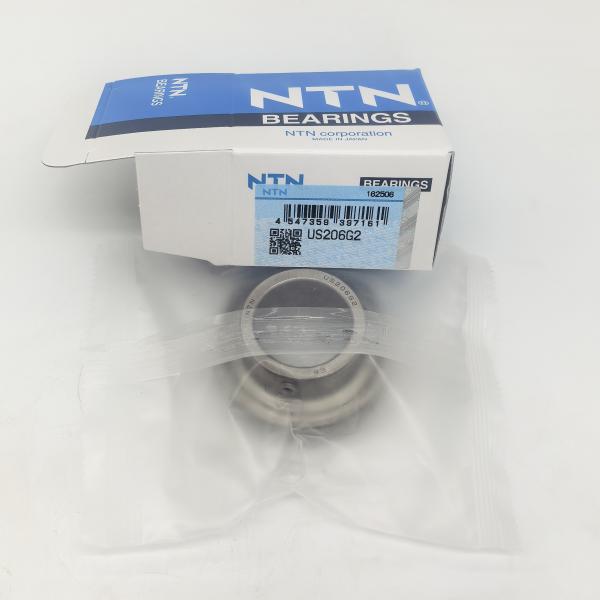

US206G2, Spherical outer diameter, fixing by socket set screw.

US206G2, Spherical outer diameter, fixing by socket set screw.

B – Width of Inner Ring: 30mm, C – Width of Outer Ring: 16mm, C1 – Distance center of OR to center of lubrication zone: 5mm, d – Shaft diameter: 30mm, D – Outer diameter of OR: 62 mm, G – Set screw size: M6x1, m – Distance to set screw: 6mm.

US206G2, Spherical outer diameter, fixing by socket set screw.

B: 30mm, C: 16mm, C1: 5mm, d: 30mm, D: 62 mm, G: M6x1, m – Distance to set screw: 6mm.
