W 6308-2RS1 Deep groove ball bearing with seals or shields.

$135.00

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

90 in stock

Check delivery options in your location
SKU: W 6308-2RS1 Category: Tags: , , , , , Brand:

W 6308-2RS1 Deep groove ball bearing with seals or shields.

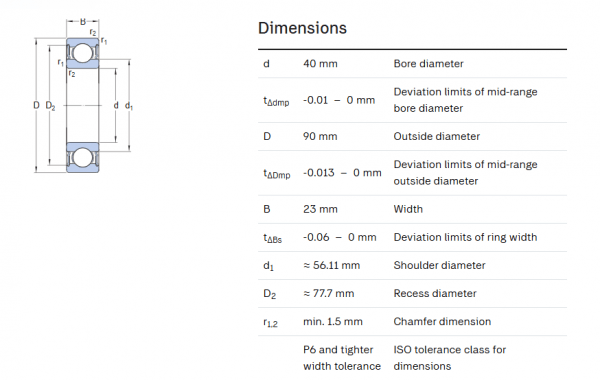

Dimensions

Bore diameter 40 mm
Outside diameter 90 mm
Width 23 mm

Performance

Basic dynamic load rating 42.3 kN
Basic static load rating 24 kN
Limiting speed 5 000 r/min
SKF performance class SKF Explorer

Properties

Filling slots Without
Number of rows 1
Locating feature, bearing outer ring Without
Bore type Cylindrical
Cage Sheet metal
Matched arrangement No
Radial internal clearance CN
Material, bearing Bearing steel
Coating Without
Sealing Seal on both sides
Sealing type Contact
Lubricant Grease
Relubrication feature Without
Indicative carbon footprint for new product 2.3 kg CO2e

Logistics

Product net weight 0.63 kg
eClass code 23-05-08-01
Weight 23 oz
Dimensions 90 × 40 × 23 mm
