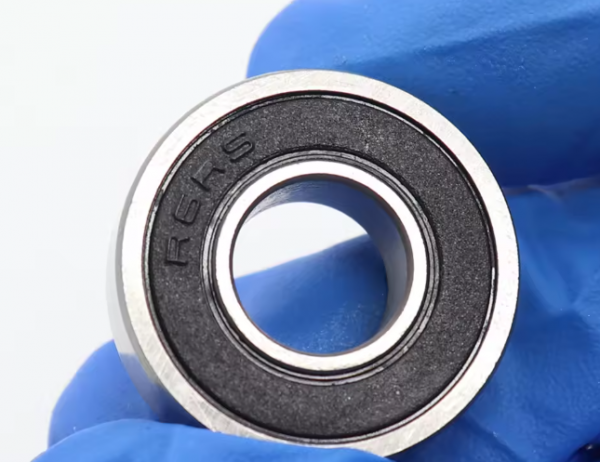

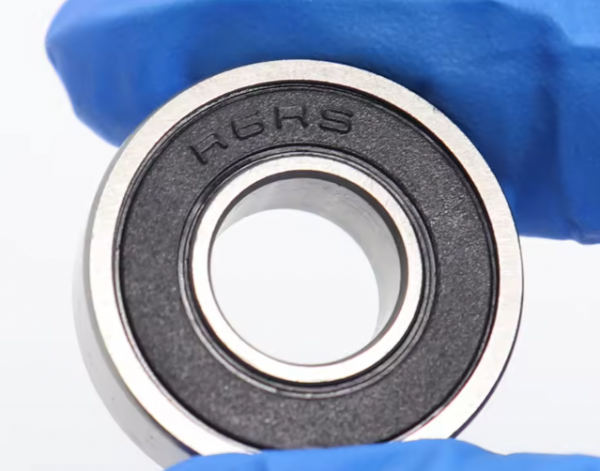

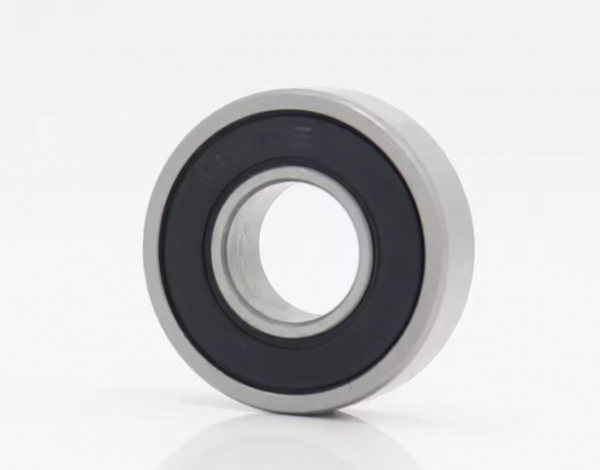

R6RS Bearing, 9.525*22.225*7.144 mm (10 pcs), Inch Miniature R6 2RS Ball Bearings

R6RS Bearing 9.525*22.225*7.144 mm ( 10 PCS ) Inch Miniature R6 2RS Ball Bearings

Miniature Bearing Types & Features

Miniature and instrument ball bearings can be divided into two basic types, deep groove and angular contact. The first (deep groove) can also be classified as “Open”, “Shielded”, or “Sealed” depending on the existence and type of seal or shield. Deep groove ball bearings have two inherent advantages;

they can sustain some axial load in either direction as well as radial loads, and the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration. Several different cage designs are available with different characteristics and the choice depends upon the individual application.

TECHNICAL SPECS

Model: R6-RS

Metric:
Inner (d): 9.525 mm
Outer (D): 22.225 mm
Width (B): 7.144 mm

Inch:
Inner (d): 3/8 = 0.375 inch
Outer (D): 7/8 = 0.875 inch
Width (B): 9/32 = 0.2812 inch
Grade: ABEC-1
Material: 52100 Chrome Steel
Seal: Sealed
