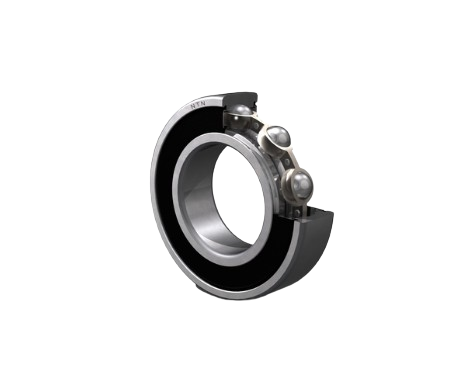

6020LL – NTN, 100x150x24mm
Deep groove ball bearing, radial contact, pressed steel cage, non-contact seals on both sides
The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

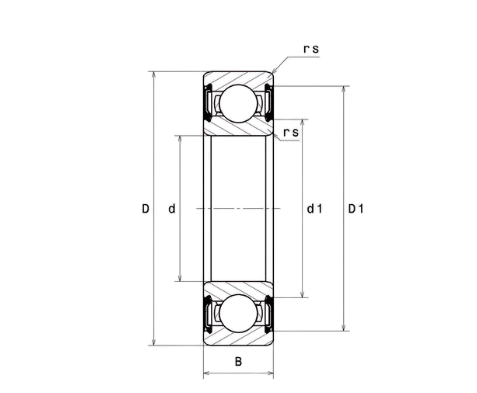

PRODUCT DEFINITION
| Brand | NTN |
| d – Internal diameter | 100 mm |
| D – External diameter | 150 mm |
| B – Bearing/Inner ring width | 24 mm |
| rs – Min fillet radius | 1,5 mm |
| Radial clearance class | CN |
| Mass | 1,15 kg |
PRODUCT PERFORMANCE
| C – Dynamic load | 66,5 kN |
| C0 – Static load | 54 kN |
| Cu – Fatigue limit load | 3,5 kN |
| f0 – Coefficient | 15.9 |
| N lim – Grease lubrication limit speed | 4200 tr/min |
| Tmin – Min operating temperature | -25 °C |
| Tmax – Max operating temperature | 110 °C |

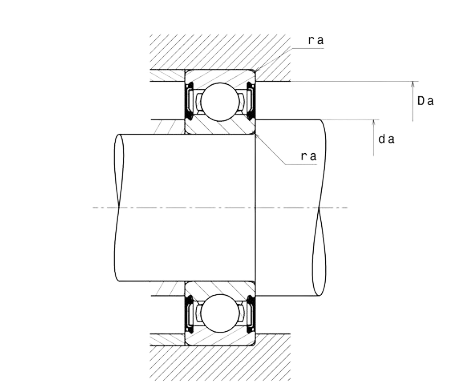

ABUTMENT
| da min – Min shoulder diameter IR | 108 mm |
| da max – Max shoulder diameter IR | 110 mm |
| Da max – Max shoulder diameter OR | 142 mm |
| ra max – Max shaft & housing fillet radius | 1,5 mm |
