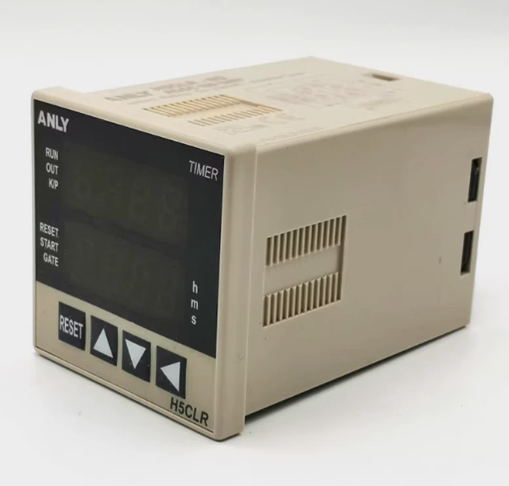

H5CLR-8G, ANLY ELECTRONICS, MULTI-FUNCTION DIGITAL TIMER

Manufacturer: Manufacturer: ANLY ELECTRONICS

Type of module: timer

Counting range: 0,001s…9999h

Kind of output: SPDT

Number of operation modes: 11

Mounting: for DIN rail mounting, on panel, socket

Manufacturer series: A-H5CLR

Counter operation modes: cumulative, delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S.

Operating temperature: -10…50°C

Output 1 electrical parameters: 250V AC / 5A

Kind of display used: LED x2

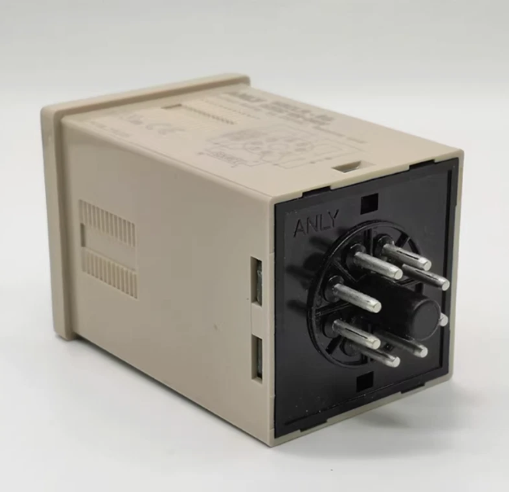

Electrical connection: round socket

Kind of connector: octal

Mounting hole diameter: Mounting hole diameter: 45x45mm

Number of pins: 8

The additional control inputs: RESET, START

Related items: A-08, A-08/DIN, A-RAM

Indication: LED
